Acoustement Plaster 40

Detailing all Pyrok Acoustement products is similar to working with stucco and traditional three-coat plaster. Utilize metal and plastic screeds, beads, reveals, J-molding and corner aids; as well as wood trims and Fry Reglets conforming to the thickness of the acoustement desired. All Pyrok Acoustement products can be applied to different thicknesses to achieve optimal acoustical performance.

Acoustement Plaster 20 is gypsum-based and is typically applied to drywall substrates. Drywall should be a minimum 5/8 inch thick and the framing should be 16 inches on center or less. Drywall joints require a level 4 finish.


1 Gypsum Board Typical Perimeter

2 Gypsum Board Typical Corner

3 Metal Lath Application

Product Data


Decorative Acoustical Surfacing Material
Product Data Acoustement Plaster 40

> Download Pyrok Acoustement Plaster 40 Product Data

1. Description

Pyrok Acoustement Plaster 40 is a 40 PCF (air-dried density) gypsum plaster/exfoliated vermiculite spray-applied formulation 100% free from asbestos, mineral fiber polystyrene and cellulose.

Pyrok Acoustement Plaster 40 is highly abuse resistant (impact, abrasion) and allows substrates to breathe, and can be readily cleaned by a variety of methods.

2. Uses

Pyrok Acoustement Plaster 40 can be used as a decorative surfacing material, an acoustically attenuating surfacing material or as a combination of these qualities even in conjunction as a fireproofing material. This material is recommended for interior applications where superior abuse resistance is required.

Typically, Pyrok Acoustement Plaster 40 is specified for use in hotel lobbies, atriums, gymnasiums, manufacturing facilities, contact wall areas, and any other area requiring high abuse resistance and sound absorption qualities.

It can also be used on interior surfaces of walkways, hallways and rooms where a purely decorative finish is desired.

Pyrok Acoustement Plaster 40 may also be used on suspended ceilings as a combination acoustical finish and decorative material depending on the structural configuration and building use.

Custom integral coloration is available within the limits of iron oxide pigmentation.

3. Packaging
35lb. Kraft paper/polyethylene-lined bags
55 bags shrink wrapped pallet (minimum)
1100 bags per truckload

4. Yield
15Bd. Ft./bag (ideal)

5. Installers
Pyrok, Inc. recommends application of Pyrok Acoustement Plaster 40 be performed only by approved Pyrok applicators. An approved applicator list is available from Pyrok, Inc.

6. Application Procedures Summary
Pyrok Acoustement Plaster 40 may be applied directly to gypsum wallboard, cement board and other clean, sound substrates.

Contact Pyrok, Inc. for verification of compatibility with substrate and suitability of primer.

Mix in mechanical type mixer with paddle or ribbon type blades. Use 3-5 gallons of clean, potable water per each 35-pound bag of Pyrok Acoustement Plaster 40. Mix 1 to 2 minutes.

Spray-apply using equipment recommended by Pyrok, Inc. Air supply at the spray nozzle shall be a minimum of 40 pounds per square inch. Wet density at the nozzle shall be 70-85 pounds per cubic foot.

Application
Brush or roll-apply a liberal coat of Plasterweld/Weld-Crete to the substrate immediately prior to the application of Pyrok Acoustement Plaster 40. Apply a splatter-coat covering 60% to 80% of the substrate surface. Allow splatter coat to cure overnight. Successive coats of Pyrok Acoustement Plaster 40 shall not exceed 1/8 to 1/4 inch thick per application. 2-3 days of drying time will be required after 5/8 inch thickness has been applied and additional thickness is required. Where thickness of the Acoustement Plaster 40 is to exceed 1 1/8 inch, or existing paint is not removed, chicken wire or metal lath must be fastened to the substrate. During application and drying of the Acoustement Plaster 40, temperatures should be maintained between 50 – 95 degrees Fahrenheit. The humidity should be maintained between 45% – 75% for proper application and drying.

Topcoating/Curing
Pyrok Acoustement Plaster 40 may be supplied in several integral colors. Consult Pyrok, Inc. for further information regarding suitable topcoating and curing compounds.

Patching or Repair
Contact Pyrok, Inc. or your construction representative for patching or repair procedures.

Cleaning
Wet Pyrok Acoustement Plaster 40 may be removed by brushing or with water. Dry Pyrok Acoustement Plaster 40 may require scraping or chipping to remove.

Pyrok Acoustement Plaster 40 may be vacuum-brush cleaned after set.

Storage and Shelf Life
Store Pyrok Acoustement Plaster 40 off the ground in unopened, original packages and keep dry. Pyrok Acoustement Plaster 40, kept dry, has a one (1) year shelf life.

Warranty
Manufacturer warrants the material to be supplied, agreeing to replace that which has cracked, flaked, dusted excessively, peeled or fallen from substrate, or otherwise deteriorated to a condition where it would not perform effectively as intended for fire protection and sound absorbent purposes; due to defective materials and not due to abuse, improper maintenance, unforeseeable ambient exposures or other causes beyond anticipated conditions by manufacturer. The warranty period will be 10 years from date of installation. Manufacturer’s liability under any expressed or implied warranty is limited solely to replacement of Pyrok products proved defective and does not include labor or other consequential damages. The suitability of the product for any intended use shall be solely up to the user.

The express warranties set forth herein are in lieu of all other warranties, express or implied, including without limitation, any warranties or merchantability or fitness for a particular purpose. In no event shall manufacturer be liable for any direct, indirect, incidental, or consequential damages resulting from any defect in the material even if manufacturer has been advised of the possibility of such damages.

Physical Performance Properties

PropertyTest MethodValue
Asbestos ContentEPA 400/4M-82-020No Asbestos
No Mineral Fiber
Density ASTM E 60540 lbs/cu ft
Compressive StrengthASTM E 76164 PSI
Bond StrengthASTM E 7362400 lbs./sq. ft.
Surface Burning Characteristics ASTM E 840 Flame Spread
0 Smoke Developed
Sound AbsorptionASTM C 4230.50 NRC @ 1/2“ Thick
0.65 NRC @ 1” Thick
ToxicityUniversity of Pittsburgh
Toxicity Test
LC 50 >300 Grams
CombustibilityASTM E 136Non-Combustible

Sound absorption coefficient on solid backing with no air gap ASTM C 423

Frequency (HZ) 125250500100020004000NRC
Absorption Coefficient @ 1/2”0.080.110.280.570.970.910.50
Absorption Coefficient @ 1”0.030.130.550.970.930.990.65

Specifications


Acoustement Plaster 40
Sample Performance Specifications
Section 09210

Spray Applied Acoustical Plasters

Part 1: General

1.01 Work Included:
A.
Extent of sprayed on decorative/acoustical insulation is indicated on drawings.

1.02 Quality Assurance:
A.
Provide Gypsum Plaster-Vermiculite material which has been tested to and achieve the following values:

PropertyTest MethodValue
Asbestos ContentEPA 400/4M-82-020No Asbestos
No Mineral Fiber
Density ASTM E 60540 lbs/cu ft
Compressive StrengthASTM E 76164 PSI
Bond StrengthASTM E 7362400 lbs./sq. ft.
Surface Burning Characteristics ASTM E 840 Flame Spread
0 Smoke Developed
Sound AbsorptionASTM C 4230.50 NRC @ 1/2“ Thick
0.65 NRC @ 1” Thick
ToxicityUniversity of Pittsburgh
Toxicity Test
LC 50 >300 Grams
CombustibilityASTM E 136Non-Combustible

B. Provide testing results and procedures which have been certified by Cedar Knolls Acoustical Labs, or other accredited independent testing laboratories. Thickness of test samples must be determined and reported by acoustical laboratory.

1.NRC not less than 0.65 at 1 inch thickness and coefficient not less than 0.97, + or -, 0.03 at 1,000 Hz. Conduct testing on solid backing with no air gap.

C. Installer: licensed by manufacturer.

D. Control Sample: Prior to installation of final cost, apply an area of 50 sq. ft. in presence of architect, for approval of finish texture, as selected from samples.

1.03 Submittals
A.
Submit manufacturer’s installation instructions, test data substantiating compliance with quality assurance.

B. Submit 12 inch square sample of sprayed on insulation showing texture variations for approval. Resubmit as required until approved. All samples must be certified by manufacturer that they are representative of the texture which was acoustically tested in supporting acoustical test reports.

C. Submit test reports from all suppliers showing material to be 100% free of asbestos, mineral fibers, polystyrene and cellulose.

D. Submit certification of applicator licensing.

E. Submit acoustical test data for specified finish.

1.04 Material Handling
A.
Keep material dry until ready for use.

1.05 Warranty
A.
Manufacturer shall warrant the material to be supplied, agreeing to repair/replace that which has cracked, flaked, dusted excessively, peeled or fallen from substrate, or otherwise deteriorated to a condition where it would not perform effectively as intended for a sound absorbent purpose; due to defective materials and not due to abuse, improper maintenance, unforeseeable ambient exposures, or other causes beyond anticipated conditions by manufacturer. The warranty period will be 10 years from date of substantial completionn.

Part 2: Products

2.01 Materials
A.
Materials shall be Acoustement Plaster 40 manufactured by Pyrok, Inc., Mamaroneck, N.Y. (914) 777-7070, or equal.

B. Color shall be __________ selected by the architect.

C. Texture shall be (semi smooth) (semi-smooth trowelled finish).

D. Thickness shall be __________.

Part 3: Execution

3.01 Inspection and Preparation
A.
Examine all substrate and conditions.

B. Assure substrate is free of oil, grease, dirt, paint, or other matter which would impair bond or install metal lath or fiberglass mesh as recommended by the manufacturer.

C. Do not proceed until said substrate and conditions are acceptable.

D. Prepare substrate by filling voids and cracks and offsets, remove projections that result in telegraphing presence of imperfections.

E. Prime substrate with primer or bonding agent as recommended by the manufacturer.

F. Do not apply insulation material when temperature is below 44 degrees F (ambient), or substrate is below 40 degrees F.

G. Mask all adjoining surfaces in order to minimize damage from overspray.

H. Provide ventilation if required, and avoid excess drying rates.

I. Provide tarps or temporary enclosures as necessary to confine operations.

J. Perform all patching and repairing of insulation required to be done due to cutting, etc., by other trades.

3.02 Application
A.
Apply in accordance with manufacturers printed instructions using any rotary-stator plastering pump or other spray equipment approved by the manufacturer.

B. Install to thickness indicated or thickness required to achieve NRC specified when 1/2” – 5/8” thickness has been achieved, allow 2-3 days drying time before remaining additional thickness is applied.

C. Ensure that texture and color are all as per control sample.

3.03 Cleaning And Patching
A.
Remove overspray and fall out materials immediately upon completion of the work in each area. Clean surfaces to remove evidence of soiling. Repair or replace damaged work surfaces to acceptable conditions.

B. Coordinate work with other work, to minimize possibility of damage to insulation resulting from performance of subsequent work. As other units of work are completed in each area, patch damaged areas or surfaces of insulation by over spraying to match original installations, or by patching procedures as required to provide acceptable results.

SDS


Safety
Data Sheet
Acoustement Plaster 40

LEEDS


Environmental Sustainability
Acoustement Plaster 40

Acoustical Finishes from Pyrok™, Inc.

Organized according to Green Format:
A reporting Guide for Sustainable Criteria of Products.*

> Download Pyrok Acoustement Plaster 40 LEEDS

1. Master Format 2004
Section: 09 25 00 – Acoustical Spray on Finish 09 51 00 – Acoustical Ceilings
Product: Acoustement Plaster 40 acoustical finish

2. Manufacturer’s Information
Trade Name: Acoustement Plaster 40
Product: Acoustical Finish
Manufacturer: Pyrok™, Inc.

3. Product Description
The Acoustement Plaster 40 acoustical finish system consists of a spray on, trowel finish surface manufactured from a gypsum base. Acoustement Plaster 40 is 40pcf density.

The system can be installed on ceilings, walls, and other interior features where a high level of abuse-resistance is required.

If a suspension system is required for the installation of Acoustement Plaster 40, the sustainability of the suspension system can also be considered.

4. Regulatory Agency Sustainability Approvals
New York City Department of Buildings Report of Material and Equipment Acceptance Division, MEA #376-88-M.

Material Safety data Sheet (MSDS) is available upon request.

5. Sustainability Standards and Certifications
Acoustement Plaster 40 acoustical finish can impact the following prerequisites and credits under the USGBC’s LEED program (http://www.usgbc.com)

EA Prerequisite 1 – Fundamental Commissioning of the Building Energy System
Provide access doors if required for commissioning or maintaining building systems located above ceilings.

EA Credit 1 – Optimize Energy Performance
Lighting Efficiency is dependent on the desired finish quality. The light reflectivity is as follows:
Textured 42 in
Semi-Smooth 62 in
Painted 82 in
(measured in accordance with DIN 5036 – Radiometric and Photometric Properties of materials).
Thermal Insulation: R-value = 0.75
(measured in accordance with DIN 52613 – Thermal Insulation Testing; Determination of Thermal Conductivity by the Tube Method when tested in a horizontal position).

MR Credit 2.1 and 2.2 – Construction Waste Management:
Packaging: 35lbs bags packaged in paper-polyethylene lined bags.
55 bags shrink wrapped on a pallet,
1100 bags per truckload.
Scrap: See Article 10 and 12, below.

EQ Prerequisite 3 – Minimum Acoustic Performance.**
Acoustement Plaster 40 sound absorptive finish contributes to control of reverberation within classrooms.
Acoustement Plaster 40 can provide noise reduction coefficients (NRC) up to 0.75 at 1-1/4” thickness.
(measured in accordance with ASTM C423 – Sound Absorption and Sound Absorption Coefficients by the Reverberation Room Method).

EQ Credit 4.2 – Low Emitting Materials
Acoustement Plaster products give off extremely low levels of VOCs:
Acoustement Plaster 40: 0g/l
(measured in accordance with procedures outline in CPA method 24 “Volatile Organic Content (VOC) of paints and related coatings.” The VOC was calculated using the equation referenced in ASTM D3960 “Determination of Volatile Organic Compound Content of Paints and related coasting”)

EQ Credits 8.1 and 8.2 – Daylight and Views
See comment on lighting efficiency at EA credit 1, above.

6. Sustainable Performance Criteria
No criteria have been identified.

7. Sustainable Composition of Product
No criteria have been identified.

8. Material Extraction and Transportation
Acoustement Plaster 40 is processed and shipped from New Eagle, PA. It is composed of the following materials:
– gypsum (Oklahoma)
– perlite (Pennsylvania)
– vermiculite (extracted in South Africa, processed in Pennsylvania)
The light weight of the Acoustement Plaster system minimizes energy expended in transport.

9. Manufacturing Phase
No by-products are produced in the manufacturing process. No toxic or hazardous materials are used or produced. See MSDS.

10. Construction Phase
Unused finish coat materials can be saved for use on other projects. The light weight of Acoustement Plaster 40 materials simplifies handling and reduces installation energy use.

11. Facility Operations Phase
The acoustical properties of Acoustement Plaster 40 ceilings improve the acoustic quality of a space. Studies have shown that building occupants are more satisfied and productive in optimal acoustic environments.

Acoustement Plaster 40 is mold resistant.

12. Deconstruction / Recycling
100 percent of demolition debris may be recycled as a fill material or roadway base material.

13. Additional Information
The Acoustement Plaster 40 is durable and can last the life of a building with minimal maintenance. The surface can be vacuumed with a stiff bristle brush. Small smudges can be removed with a soft pencil eraser. If necessary, the Acoustement Plaster 40 can be painted without loss of its sound absorbing properties.

14. Certification
The information provided herein concerning the sustainability of Acoustement Plaster 40 Acoustic Plaster Finish is true, correct, and verifiable.

hp_signature
Name: Howard Podolsky
Title: General Manager

*GreenFormat is a format for organizing information pertaining to the environmental sustainability of building products. It is being developed by the Construction Specifications Institute (CSI). At the time this document was issued, GreenFormat has not been finalized.

For additional information, see http://www.csinet.org/Home-Page-Category/Formats/GF

**EQ Prerequisite 3 – Minimum Acoustic Performance is currently only located in the ‘LEED for Schools’ Program.

Details


Details
Acoustement Plaster 40

Detailing all Pyrok Acoustement products is similar to working with stucco and traditional three-coat plaster. Utilize metal and plastic screeds, beads, reveals, J-molding and corner aids; as well as wood trims and Fry Reglets conforming to the thickness of the acoustement desired. All Pyrok Acoustement products can be applied to different thicknesses to achieve optimal acoustical performance.

Acoustement Plaster 20 is gypsum-based and is typically applied to drywall substrates. Drywall should be a minimum 5/8 inch thick and the framing should be 16 inches on center or less. Drywall joints require a level 4 finish.

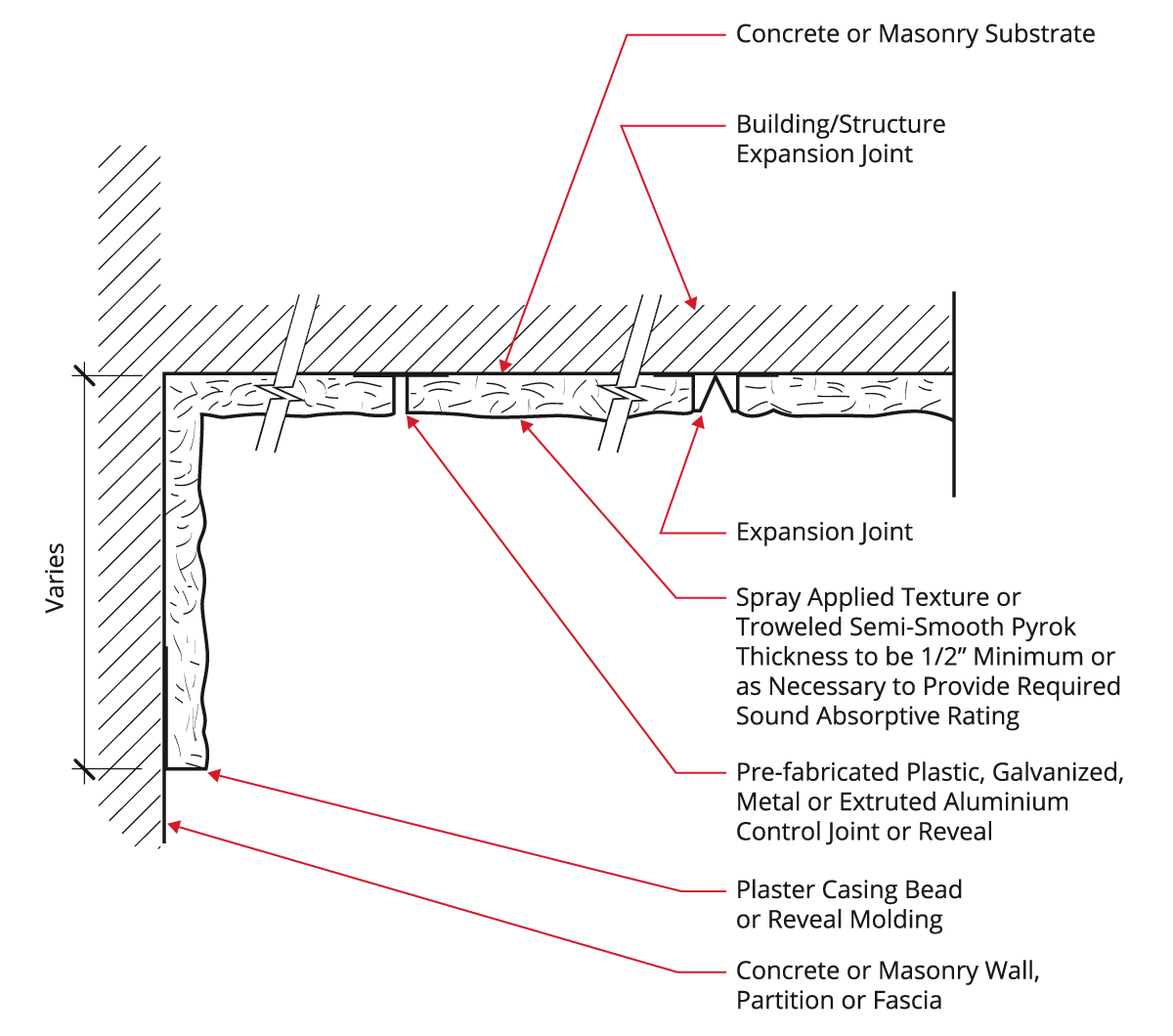

1 Concrete Masonry

2 Gypsum Board Typical Perimeter

3 Gypsum Board Typical Corner

4 Metal Lath Application

Product Data


Decorative Acoustical Surfacing Material Product Data
Acoustement Plaster 40

1. Description

Pyrok Acoustement Plaster 40 is a 40 PCF (air-dried density) gypsum plaster/exfoliated vermiculite spray-applied formulation 100% free from asbestos, mineral fiber polystyrene and cellulose.

Pyrok Acoustement Plaster 40 is highly abuse resistant (impact, abrasion) and allows substrates to breathe, and can be readily cleaned by a variety of methods.

2. Uses

Pyrok Acoustement Plaster 40 can be used as a decorative surfacing material, an acoustically attenuating surfacing material or as a combination of these qualities even in conjunction as a fireproofing material. This material is recommended for interior applications where superior abuse resistance is required.

Typically, Pyrok Acoustement Plaster 40 is specified for use in hotel lobbies, atriums, gymnasiums, manufacturing facilities, contact wall areas, and any other area requiring high abuse resistance and sound absorption qualities.

It can also be used on interior surfaces of walkways, hallways and rooms where a purely decorative finish is desired.

Pyrok Acoustement Plaster 40 may also be used on suspended ceilings as a combination acoustical finish and decorative material depending on the structural configuration and building use.

Custom integral coloration is available within the limits of iron oxide pigmentation.

3. Packaging
35lb. Kraft paper/polyethylene-lined bags
55 bags shrink wrapped pallet (minimum)
1100 bags per truckload

4. Yield
15Bd. Ft./bag (ideal)

5. Installers
Pyrok, Inc. recommends application of Pyrok Acoustement Plaster 40 be performed only by approved Pyrok applicators. An approved applicator list is available from Pyrok, Inc.

6. Application Procedures Summary
Pyrok Acoustement Plaster 40 may be applied directly to gypsum wallboard, cement board and other clean, sound substrates.

Contact Pyrok, Inc. for verification of compatibility with substrate and suitability of primer.

Mix in mechanical type mixer with paddle or ribbon type blades. Use 3-5 gallons of clean, potable water per each 35-pound bag of Pyrok Acoustement Plaster 40. Mix 1 to 2 minutes.

Spray-apply using equipment recommended by Pyrok, Inc. Air supply at the spray nozzle shall be a minimum of 40 pounds per square inch. Wet density at the nozzle shall be 70-85 pounds per cubic foot.

Application
Brush or roll-apply a liberal coat of Plasterweld/Weld-Crete to the substrate immediately prior to the application of Pyrok Acoustement Plaster 40. Apply a splatter-coat covering 60% to 80% of the substrate surface. Allow splatter coat to cure overnight. Successive coats of Pyrok Acoustement Plaster 40 shall not exceed 1/8 to 1/4 inch thick per application. 2-3 days of drying time will be required after 5/8 inch thickness has been applied and additional thickness is required. Where thickness of the Acoustement Plaster 40 is to exceed 1 1/8 inch, or existing paint is not removed, chicken wire or metal lath must be fastened to the substrate. During application and drying of the Acoustement Plaster 40, temperatures should be maintained between 50 – 95 degrees Fahrenheit. The humidity should be maintained between 45% – 75% for proper application and drying.

Topcoating/Curing
Pyrok Acoustement Plaster 40 may be supplied in several integral colors. Consult Pyrok, Inc. for further information regarding suitable topcoating and curing compounds.

Patching or Repair
Contact Pyrok, Inc. or your construction representative for patching or repair procedures.

Cleaning
Wet Pyrok Acoustement Plaster 40 may be removed by brushing or with water. Dry Pyrok Acoustement Plaster 40 may require scraping or chipping to remove.

Pyrok Acoustement Plaster 40 may be vacuum-brush cleaned after set.

Storage and Shelf Life
Store Pyrok Acoustement Plaster 40 off the ground in unopened, original packages and keep dry. Pyrok Acoustement Plaster 40, kept dry, has a one (1) year shelf life.

Warranty
Manufacturer warrants the material to be supplied, agreeing to replace that which has cracked, flaked, dusted excessively, peeled or fallen from substrate, or otherwise deteriorated to a condition where it would not perform effectively as intended for fire protection and sound absorbent purposes; due to defective materials and not due to abuse, improper maintenance, unforeseeable ambient exposures or other causes beyond anticipated conditions by manufacturer. The warranty period will be 10 years from date of installation. Manufacturer’s liability under any expressed or implied warranty is limited solely to replacement of Pyrok products proved defective and does not include labor or other consequential damages. The suitability of the product for any intended use shall be solely up to the user.

The express warranties set forth herein are in lieu of all other warranties, express or implied, including without limitation, any warranties or merchantability or fitness for a particular purpose. In no event shall manufacturer be liable for any direct, indirect, incidental, or consequential damages resulting from any defect in the material even if manufacturer has been advised of the possibility of such damages.

Physical Performance Properties

PropertyTest MethodValue
Property: Asbestos ContentTest Method: EPA 400/4M-82-020Value: No Asbestos
No Mineral Fiber
Property: Density Test Method: ASTM E 605Value: 40 lbs/cu ft
Property: Compressive StrengthTest Method: ASTM E 761Value: 64 PSI
Property: Bond StrengthTest Method: ASTM E 736Value: 2400 lbs./sq. ft.
Property: Surface Burning Characteristics Test Method: ASTM E 84Value: 0 Flame Spread
0 Smoke Developed
Property: Sound AbsorptionTest Method: ASTM C 423Value: 0.50 NRC @ 1/2“ Thick
0.65 NRC @ 1” Thick
Property: ToxicityTest Method: University of Pittsburgh
Toxicity Test
Value: LC 50 >300 Grams
Property: CombustibilityTest Method: ASTM E 136Value: Non-Combustible

Sound absorption coefficient on solid backing with no air gap ASTM C 423

125 Hz250 Hz500 Hz1000 Hz2000 Hz4000 HzNRC
Absorption Coefficient @ 1/2”0.080.110.280.570.970.910.50
Absorption Coefficient @ 1”0.030.130.550.970.930.990.65

Specifications


Acoustement Plaster 40
Sample Performance Specifications
Section 09210

Spray Applied Acoustical Plasters

Part 1: General

1.01 Work Included:
A.
Extent of sprayed on decorative/acoustical insulation is indicated on drawings.

1.02 Quality Assurance:
A.
Provide Gypsum Plaster-Vermiculite materials which has been tested to and achieved following values:

PropertyTest MethodValue
Property: Asbestos ContentTest Method: EPA 400/4M-82-020Value: No Asbestos
No Mineral Fiber
Property: Density Test Method: ASTM E 605Value: 40 lbs/cu ft
Property: Compressive StrengthTest Method: ASTM E 761Value: 64 PSI
Property: Bond StrengthTest Method: ASTM E 736Value: 2400 lbs./sq. ft.
Property: Surface Burning Characteristics Test Method: ASTM E 84Value: 0 Flame Spread
0 Smoke Developed
Property: Sound AbsorptionTest Method: ASTM C 423Value: 0.50 NRC @ 1/2“ Thick
0.65 NRC @ 1” Thick
Property: ToxicityTest Method: University of Pittsburgh
Toxicity Test
Value: LC 50 >300 Grams
Property: CombustibilityTest Method: ASTM E 136Value: Non-Combustible

B. Provide testing results and procedures which have been certified by Cedar Knolls Acoustical Labs or other independent testing laboratories. Thickness of test samples must be determined and reported by acoustical laboratory. Nominal thicknesses are not acceptable, unless peak thicknesses are also reported.

1.NRC not less than 0.65 at 1 inch thickness and coefficient not less than 0.97, + or – 0.03, at 1,000 Hz. Conduct testing on solid backing with no air gap.

C. Installer: licensed by manufacturer.

D. Control Sample: Prior to installation of final coat, apply an area of 50 sq. ft. in presence of architect, for approval of finish texture, as selected from samples.

1.03 Submittals
A.
Submit manufacturer’s installation instructions, test data substantiating compliance with quality assurance.

B. Submit 12 inch square sample of sprayed on insulation showing texture variations for approval. Resubmit as required until approved. All samples must be certified by manufacturer that they are representative of the texture which was acoustically tested in supporting acoustical test reports.

C. Submit test reports from all suppliers showing material to be 100% free of asbestos, mineral fibers, polystyrene and cellulose.

D. Submit certification of applicator licensing.

E. Submit acoustical test data for specified finish.

1.04 Material Handling
A.
Keep material dry until ready for use.

1.05 Warranty
A.
Manufacturer shall warrant the material to be supplied, agreeing to repair/replace that which has cracked, flaked, dusted excessively, peeled or fallen from substrate, or otherwise deteriorated to a condition where it would not perform effectively as intended for a sound absorbent purpose; due to defective materials and not due to abuse, improper maintenance, unforeseeable ambient exposures, or other causes beyond anticipated conditions by manufacturer. The warranty period will be 10 years from date of substantial completion.

Part 2: Products

2.01 Materials
A.
Materials shall be Acoustement Plaster 40 manufactured by Pyrok, Inc., Mamaroneck, N.Y. (914) 777-7070, or equal.

B. Color shall be __________ or selected by the architect.

C. Texture shall be (semi smooth) (semi-smooth trowelled finish).

D. Thickness shall be __________.

Part 3: Execution

3.01 Inspection and Preparation
A.
Examine all substrate and conditions.

B. Assure substrate is free of oil, grease, dirt, paint, or other matter which would impair bond or install metal lath as recommended by the manufacturer.

C. Do not proceed until said substrate and conditions are acceptable.

D. Prepare substrate by filling voids and cracks and offsets, remove projections that result in telegraphing presence of imperfections.

E. Prime substrate with primer or bonding agent as recommended by the manufacturer.

F. Do not apply insulation material when temperature is below 44 degrees F (ambient), or substrate is below 40 degrees F.

G. Mask all adjoining surfaces in order to minimize damage from overspray.

H. Provide ventilation if required, and avoid excess drying rates.

I. Provide tarps or temporary enclosures as necessary to confine operations.

J. Perform all patching and repairing of insulation required to be done due to cutting, etc., by other trades.

3.02 Application
A.
Apply in accordance with manufacturers printed instructions using any rotary stator plastering pump or other spray equipment approved by the manufacturer.

B. Install to thickness indicated or thickness required to achieve NRC specified.

C. Ensure that texture and color are all as per control sample.

D. Utilize Acoustement Plaster 40 for initial spray coats as recommended by the manufacturer

3.03 Cleaning And Patching
A.
Remove overspray and fall out materials immediately upon completion of the work in each area. Clean surfaces to remove evidence of soiling. Repair or replace damaged work surfaces to acceptable conditions.

B. Coordinate work with other work, to minimize possibility of damage to insulation resulting from performance of subsequent work. As other units of work are completed in each area, patch damaged areas or surfaces of insulation by over spraying to match original installations, or by patching procedures as required to provide acceptable results.

MSDS


Material Safety
Data Sheet
Acoustement Plaster 40

LEEDS


Environmental Sustainability
Acoustement Plaster 40

Acoustical Finishes from Pyrok™, Inc.

Organized according to Green Format:
A reporting Guide for Sustainable Criteria of Products.*

1. Master Format 2004
Section: 09 25 00 – Acoustical Spray on Finish 09 51 00 – Acoustical Ceilings
Product: Acoustement Plaster 40 acoustical finish

2. Manufacturer’s Information
Trade Name: Acoustement Plaster 40
Product: Acoustical Finish
Manufacturer: Pyrok™, Inc.

3. Product Description
The Acoustement Plaster 40 acoustical finish system consists of a spray on, trowel finish surface manufactured from a gypsum base. Acoustement Plaster 40 is 40pcf density.

The system can be installed on ceilings, walls, and other interior features where a high level of abuse-resistance is required.

If a suspension system is required for the installation of Acoustement Plaster 40, the sustainability of the suspension system can also be considered.

4. Regulatory Agency Sustainability Approvals
New York City Department of Buildings Report of Material and Equipment Acceptance Division, MEA #376-88-M.

Material Safety data Sheet (MSDS) is available upon request.

5. Sustainability Standards and Certifications
Acoustement Plaster 40 acoustical finish can impact the following prerequisites and credits under the USGBC’s LEED program (http://www.usgbc.com)

EA Prerequisite 1 – Fundamental Commissioning of the Building Energy System
Provide access doors if required for commissioning or maintaining building systems located above ceilings.

EA Credit 1 – Optimize Energy Performance
Lighting Efficiency is dependent on the desired finish quality. The light reflectivity is as follows:
Textured 42 in
Semi-Smooth 62 in
Painted 82 in
(measured in accordance with DIN 5036 – Radiometric and Photometric Properties of materials).
Thermal Insulation: R-value = 0.75
(measured in accordance with DIN 52613 – Thermal Insulation Testing; Determination of Thermal Conductivity by the Tube Method when tested in a horizontal position).

MR Credit 2.1 and 2.2 – Construction Waste Management:
Packaging: 35lbs bags packaged in paper-polyethylene lined bags.
55 bags shrink wrapped on a pallet,
1100 bags per truckload.
Scrap: See Article 10 and 12, below.

EQ Prerequisite 3 – Minimum Acoustic Performance.**
Acoustement Plaster 40 sound absorptive finish contributes to control of reverberation within classrooms.
Acoustement Plaster 40 can provide noise reduction coefficients (NRC) up to 0.75 at 1-1/4” thickness.
(measured in accordance with ASTM C423 – Sound Absorption and Sound Absorption Coefficients by the Reverberation Room Method).

EQ Credit 4.2 – Low Emitting Materials
Acoustement Plaster products give off extremely low levels of VOCs:
Acoustement Plaster 40: 0g/l
(measured in accordance with procedures outline in CPA method 24 “Volatile Organic Content (VOC) of paints and related coatings.” The VOC was calculated using the equation referenced in ASTM D3960 “Determination of Volatile Organic Compound Content of Paints and related coasting”)

EQ Credits 8.1 and 8.2 – Daylight and Views
See comment on lighting efficiency at EA credit 1, above.

6. Sustainable Performance Criteria
No criteria have been identified.

7. Sustainable Composition of Product
No criteria have been identified.

8. Material Extraction and Transportation
Acoustement Plaster 40 is processed and shipped from New Eagle, PA. It is composed of the following materials:
– gypsum (Oklahoma)
– perlite (Pennsylvania)
– vermiculite (extracted in South Africa, processed in Pennsylvania)
The light weight of the Acoustement Plaster system minimizes energy expended in transport.

9. Manufacturing Phase
No by-products are produced in the manufacturing process. No toxic or hazardous materials are used or produced. See MSDS.

10. Construction Phase
Unused finish coat materials can be saved for use on other projects. The light weight of Acoustement Plaster 40 materials simplifies handling and reduces installation energy use.

11. Facility Operations Phase
The acoustical properties of Acoustement Plaster 40 ceilings improve the acoustic quality of a space. Studies have shown that building occupants are more satisfied and productive in optimal acoustic environments.

Acoustement Plaster 40 is mold resistant.

12. Deconstruction / Recycling
100 percent of demolition debris may be recycled as a fill material or roadway base material.

13. Additional Information
The Acoustement Plaster 40 is durable and can last the life of a building with minimal maintenance. The surface can be vacuumed with a stiff bristle brush. Small smudges can be removed with a soft pencil eraser. If necessary, the Acoustement Plaster 40 can be painted without loss of its sound absorbing properties.

14. Certification
The information provided herein concerning the sustainability of Acoustement Plaster 40 Acoustic Plaster Finish is true, correct, and verifiable.

hp_signature
Name: Howard Podolsky
Title: General Manager

*GreenFormat is a format for organizing information pertaining to the environmental sustainability of building products. It is being developed by the Construction Specifications Institute (CSI). At the time this document was issued, GreenFormat has not been finalized.

For additional information, see http://www.csinet.org/Home-Page-Category/Formats/GF

**EQ Prerequisite 3 – Minimum Acoustic Performance is currently only located in the ‘LEED for Schools’ Program.
